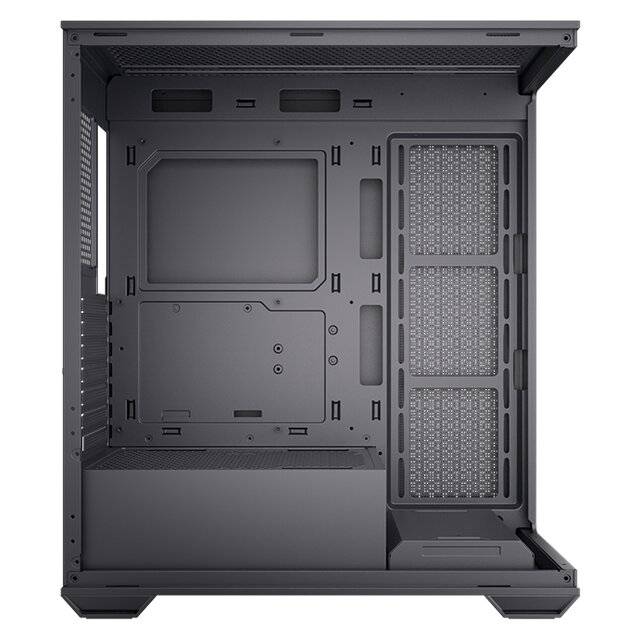

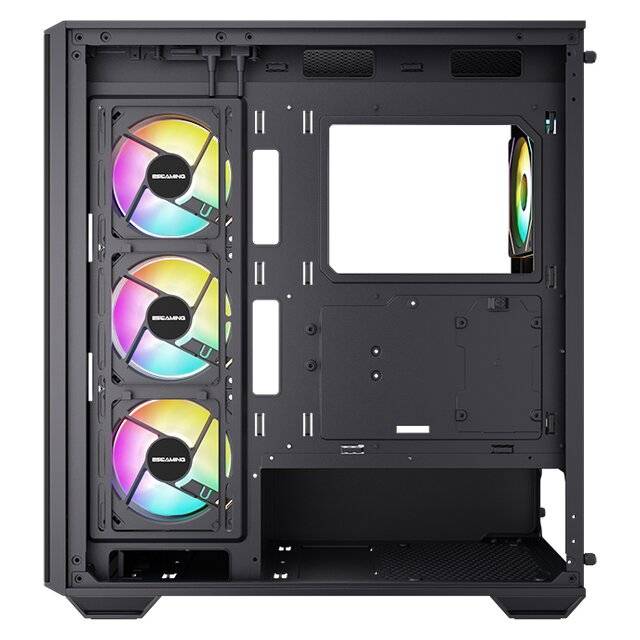

ESGaming Gilgamesh Case (Black)

Key Features

• Model Name: GILMESH
• Color: Black
• Front Panel: Easily detachable tempered glass
• Left Side Panel: Sliding 4mm tempered glass
• Right Side Panel: Metal with ventilation holes + 360mm dust filter
• Dust Protection: Magnetic dust filter on top panel
• Chassis Material: SPCC 0.7 mm
• Front I/O: USB 2.0 ×1, USB 3.0 ×1, HD Audio
• Motherboard Support: ATX, Micro‑ATX, Mini‑ITX
• PSU Position: Bottom / ATX
• Fan Support:
  • MB Tray: 3 × 120mm (optional)
  • Top: 3 × 120mm or 3 × 140mm (optional)
  • Rear: 1 × 120mm (optional)
  • PSU Cover: 3 × 120mm (optional)
• Radiator Support:
  • Top: 360mm
  • MB Tray: 360mm
  • Rear: 120mm
• Drive Bays: 1 × HDD + 1 × SSD
• PCI Slots: 7

Dimensions & Weight

• Chassis (without feet): 435 × 210 × 465 mm
• Chassis (with feet): 435 × 210 × 483 mm
• Package Size: 540 × 314 × 550 mm
• Container Load (40 HQ): 798 pcs

Hardware Clearance

• Max GPU Length: 420 mm
• Max CPU Cooler Height: 170 mm
• Max PSU Length: 180 mm

Packaging

• Carton Type: K:K 5‑ply with EPE protection
