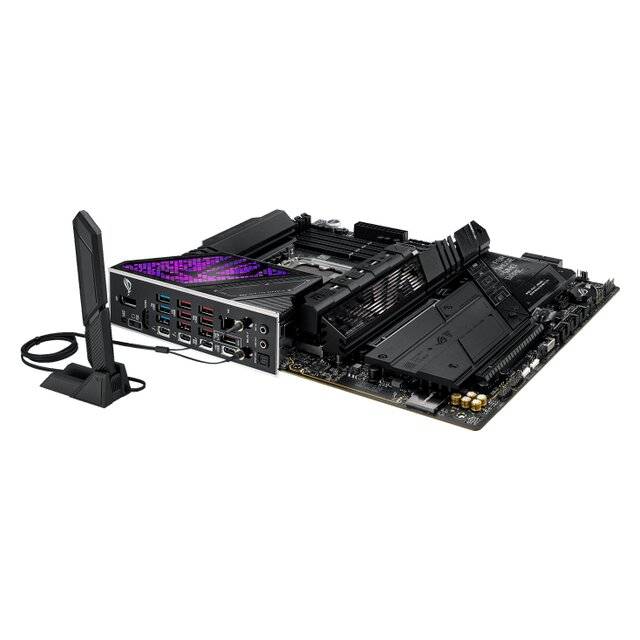

ASUS ROG Strix Z890‑E Gaming WiFi7 DDR5 Motherboard

Key Features

• CPU Support: Intel® Core™ Ultra Processors (Series 2), LGA1851 socket
• Technologies: Intel® Turbo Boost 2.0 & Turbo Boost Max 3.0 (CPU‑dependent)
• Chipset: Intel® Z890

Memory

• Slots: 4× DDR5 DIMM
• Max Capacity: 256GB
• Speeds: Up to 9200+ MT/s (OC)
• Type: Non‑ECC, Unbuffered, CUDIMM supported
• Architecture: Dual‑channel
• Profiles: Intel XMP, DIMM Flex, NitroPath DRAM, DIMM Fit, ASUS AEMP III

Graphics Outputs

• 1× DisplayPort (up to 8K@60Hz, DP 1.4)
• 1× HDMI (up to 8K@60Hz, HDMI 2.1)
• 2× Thunderbolt 4 (USB‑C) with DisplayPort & Thunderbolt video output
• Thunderbolt 4 Modes:
  • 8K@60Hz ×1 with DSC
  • 4K@60Hz ×2
  • Max bandwidth: 23.8Gbps or 16Gbps/16Gbps
• DP Alt Mode: Only one USB‑C port supports UHBR20 at a time

Expansion Slots

• With Intel Core Ultra (Series 2):
  • 1× PCIe 5.0 x16 (x16 or x8/x4/x4)
• Chipset (Z890):
  • 1× PCIe 4.0 x16 (x4 mode)
  • 1× PCIe 4.0 x1
